F700 'U' spring energised PTFE seals are designed
for SINGLE acting rotary applications.
They are particularly useful for small diameter shafts and where
groove size in limited. |
|
MA471 F700R Rotary

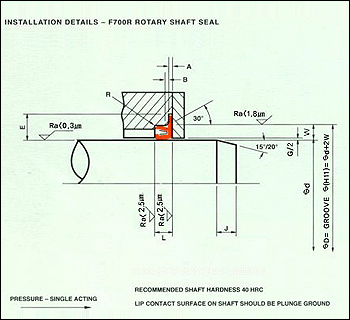

Shaft Seal¼³°èÄ¡¼ö- Installation Dimensions |
|
|
MA471F700R Àû¿ë¹üÀ§ |
Size |
Pressure |
5 - 2500mm |
350 bar |
Temperature |
Velocity |
-150 ¨¬C ~ +310 ¨¬C |
2 m/s |
°¢°¢ÀÇ Àû¿ëÇÑ°è´Â ´Ù¸¥ º¹ÇÕÀûÀÎ ÀÎÀÚ(Factor)¸¦ ÇÔ²² °í·ÁÇØ¾ßµÊ |
|
|
>> U-Spring
ŸÀÔ Enerseal
Helical SpringŸÀÔµµ °¡´ÉÇÕ´Ï´Ù |
|
|
|
¨ªd(f8) |
W |
L+0.25-0.00 |
'G' MAX |
R MAX |
A+0.0-0.1 |
B+0.2-0.0 |
E MIN |
J MIN |
10.0-19.9 |
2.25 |
3.6 |
0.13 |
0.4 |
0.75 |
0.9 |
6.5 |
3.4 |
20.0-39.9 |
3.1 |
4.8 |
0.15 |
0.6 |
1 |
1 |
7 |
3.4 |
40.0-119.9 |
4.7 |
7.1 |
0.17 |
0.8 |
1.5 |
1.3 |
10 |
3.7 |
120.0-950.0 |
6.1 |
9.5 |
0.25 |
0.8 |
2 |
1.3 |
11 |
7.5 |
* All dimensions in millimeters |
G : Diametral Clearance |
|
|
|
